    Products
    Products Center

    locations： OCEANHOOD Home > Products

    Line Fiber Spectrometer

    XS11639 High sensitivity optical fiber spectrometer

    Platform-based design, which can be configured with 500g/l-2400g/l gratings of various specifications to achieve 190nm-1100nm configurable spectral range Configured with UV enhanced linear array 2048pixel CMOS detector, with strong UV spectral response High-performance AD quantization sampling circuit, CCD quantization background noise ≤ 30RMS (100ms integration time)

    XS11639 is a basic optical fiber spectrometer, which adopts cross CT structure design, NA 0.11 numerical aperture, incident focal length 42mm, small size and compact structure. Ultraviolet enhanced CMOS detector is used to optimize the ultraviolet response. Configured with replaceable slit mechanism with key, and optimized slit height design to meet the requirements of high sensitivity sampling. The 24PIN control interface is configured to meet various measurement scenarioses such as color measurement, radiation measurement, absorption measurement, fluorescence spectrum, Raman spectrum, etc. It adopts special lens fixing technology and photoelectric separation structure, which has good temperature stability and reliability.

    HS2048 Spectrometer

    Based on traditional CT optical path design, excellent stray light absorption structure and high performance imported planar reflection grating, light path stray light ~ 2 ‰ Using NA.0.08 numerical aperture, high resolution, the best 0.07nm Platform design, you can configure 500g/l-2400g/l gratings of various specifications

    HS2048 is a miniature optical fiber spectrometer based on symmetrical CT optical path, with compact structure, configurable spectral range, high numerical aperture of N.A0.08, high resolution, and low stray light, ~ 2 ‰. With the characteristics of small temperature drift and wavelength temperature drift ~ 0.1pixel/ ℃, it is suitable for many industrial field measurements such as laser measurement, plasma emission spectrum measurement, color measurement, absorbance measurement and Raman measurement. It is an industrial grade optical fiber spectrometer with high performance and price.

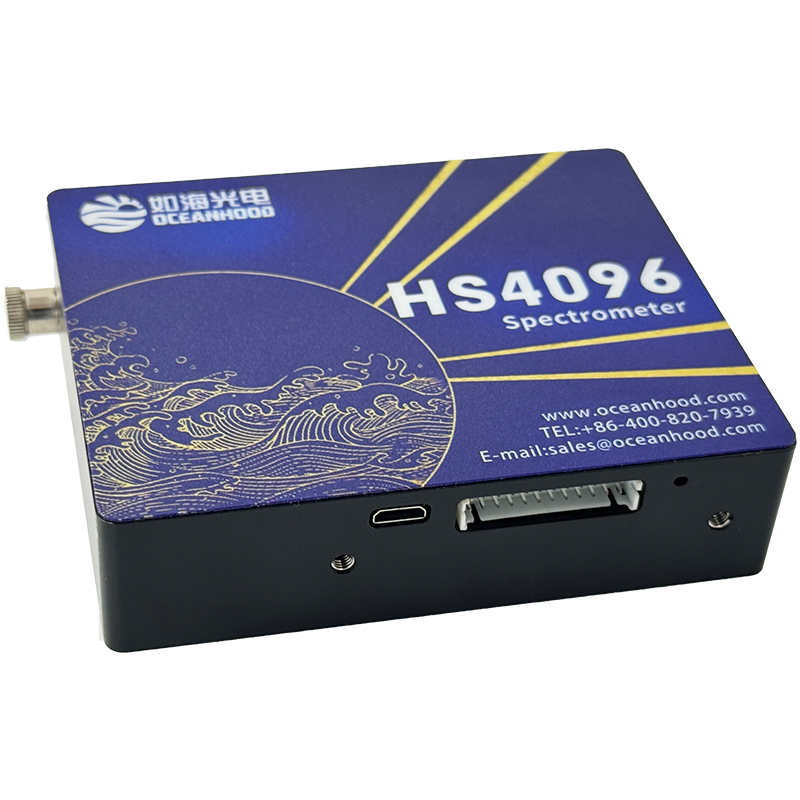

    HS4096

    Based on traditional CT optical path design, professional stray light absorption structure and high performance planar reflection grating, light path stray light ~ 0.2% Using NA.0.08 numerical aperture, high resolution, the best 0.07nm Platform design, you can configure 500g/l-2400g/l gratings of various specifications

    HS4096 is a high-resolution micro-fiber spectrometer based on symmetrical CT optical path design, with compact structure and configurable spectral range, using N.A0.08 numerical aperture, high resolution, up to 0.07nm, low stray light, ~ 0.2%. With the characteristics of small temperature drift and wavelength temperature drift ~ 0.2pixel/ ℃, it is equipped with 4096 pixel CMOS detector, low quantization spectral dark noise and more spectral channels, which is suitable for many industrial field measurements such as laser measurement, plasma emission spectrum measurement, color measurement, absorbance measurement and Raman measurement. It is an industrial grade optical fiber spectrometer with high performance and price.

    Cora Spectrometer

    Handheld Libs High resolution up to 0.04 nm; Wavelength temperature drift <0.1 pixel/°C (2048 pixels);

    Cora is an uncooled compact miniature spectrometer. It is designed with a conventional Czerny Turner optical bench.Cora uses an advanced black coating for excellent stray light control with less than 0.1% stray light. Due to its unique structural design, performance is stable and consistent. Temperature drift <0.1 pixel/°C (2048 & 4096 pixels). It can be used for UV-VIS absorbance, LED/Laser measurement, LIBS, color measurement, etc. It is an industrial-grade miniature spectrometer.

    Speed2000 Miniature Fibre Spectrometer

    Stray astigmatism ~2‰; High resolution, optimized to 0.07 nm; Wavelength temperature drift ~0.1pixel/°C;

    Speed2000 is a miniature fiber optic spectrometer, the device structure design is compact, the spectral range can be configured; high resolution, the best up to 0.07 nm; low stray light, ~ 2 ‰; small temperature drift, wavelength temperature drift ~ 0.1pixel / ℃. It is suitable for laser measurement, plasma emission spectroscopy measurement, color measurement, absorbance measurement and Raman measurement and many other industrial field measurements. It is a high price industrial grade fiber optic spectrometer.

    Gino Spectrometer

    Back-illuminated UV-enhanced CMOS detector Nanomaterial-based extinction technology, stray light less than 0.1% F6 optical design, high resolution design

    Gino is a miniature spectrometer based on IoT architecture. The spectrometer utilizes a Czerny-Turner optical path design based on planar optical
    The spectrometer utilizes a Czerny-Turner optical path design based on a planar grating with a UV sensitive back-illuminated line array CMOS detector and a low stray light quality planar grating. The number of spectral channels 2048/4096 selectable, 16bit A/D digital to analog conversion 1-11X on-board analog gain, configured with a temperature sensor, real-time detection of the spectrometer key optical path device temperature. Based on nano-material extinction technology, stray light less than 0.1%, dark noise less than 30RMS (minimum integration time). Built-in embedded computing platform with 766MHZ, 1GDDR and 16GFlash, preloaded with Linux operating system and Uspectral-Gino spectrum acquisition software. Equipped with master/slave USB, Gigabit Ethernet RJ45, HDMI and Micro-SD card interfaces and 24PIN peripheral interface. The spectrometer is available in stand-alone or as a slave sensor mode. The spectrometer can operate in environments from -20 to 60 degrees Celsius, with a spectral temperature drift of 0.1pixel/°C. The spectrometer can be configured in high-speed configurations on request. With optional high-speed configurations up to 1400 fps, A/D quantization sampling and data transfer times below 700us (2048 channels), the Gino is an industrial-grade, miniature fiber-optic spectrometer that can be used for on-site, outdoor real-time measurements.

    ATOM Micro Fibre Spectrometer

    Can be adapted to such as kelp pin multi-core dense row cluster fibre, fibre insertion and extraction strength consistency ≦ 7% Strong UV spectral response CCD Quantitative background noise≦70RMS (100ms integration time)

    ATOM is a miniature fibre optic spectrometer with a compact structural design and a configurable spectral range; the device has the advantages of high resolution, low stray light and low temperature drift. It is suitable for many industrial field measurements such as laser measurement, plasma emission spectroscopy, colour measurement, absorbance measurement and Raman measurement. It is a high-priced industrial-grade fibre optic spectrometer.
